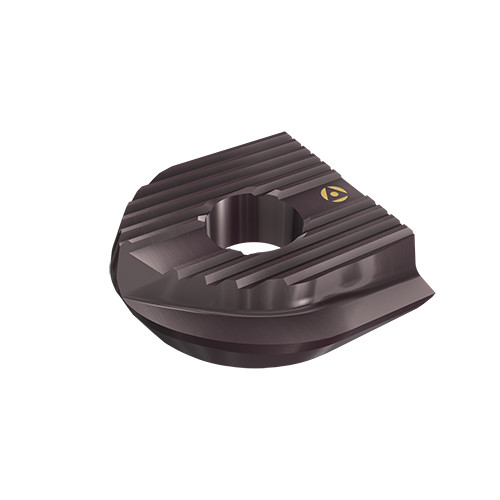

TBNR-1250-N C26S
RigidLock Ball Nose Style Milling Inserts with Neutral Flute
| Application | | Ext Milling Rigid Lock | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Corner Radius (RE) | 5/8″ | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5/8″ | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.236″ | Tool Type | Single sided Inserts |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Grade | C26S | Measurement Type | Inch |
| Insert Style | TBNR | Body Material | Carbide |
| Insert Size | 1250 | Cutting Diameter (DC) | 1-1/4″ |
| Insert Body Diameter (INSBD) | 1 |
Product Features
| Family Description | RigidLock Ball Nose Style Milling Inserts with Neutral Flute | Country of Origin | USA |
Shipping Info
Package Weight
0.001
