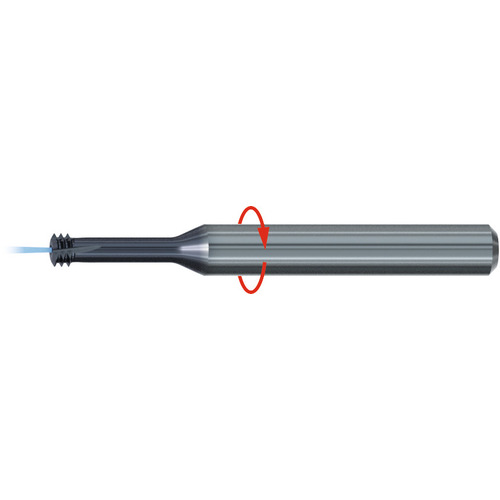

Thread Mill; 1/4″ - 28 × 6 mm Shank Dia. × 2.165″ OAL ; Carbide ; TiAlN
| Thread Size | 1/4″ | Coating | AlTiN |
| Threads per Inch (TPI) | 28 | Application | | External Thread Milling | Internal Thread Milling | |
| Thread Standard | UNF | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.516″ | Usable Length (LU) | 0.516″ |
| Overall Length (OAL) | 2.165″ | Length Group | 2xD |
| Flute Count (NOF) | 5 | Tool Type | Thread Mill |
| Shank Type | Round | Cutting Direction (HAND) | Left Hand |
Product Features
| Remarks | • Solid carbide circular thread mill with left hand flute design for additional stability. • Three tooth design with roughing and finishing in a single profile. • Full bottoming threads to within 1 pitch • For aerospace and exotic materials | Country of Origin | Germany |
Shipping Info
Package Weight
0.054
