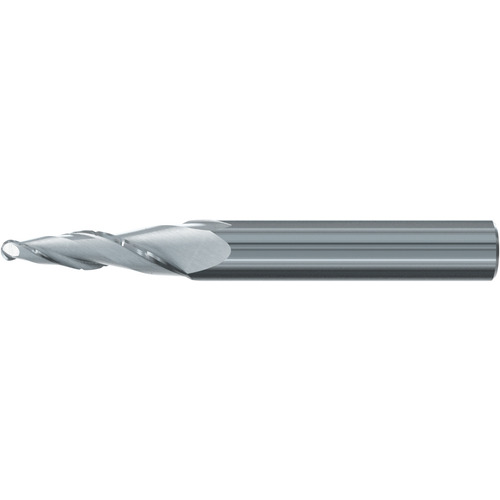

Tapered End Mills; 5.33 mm Dia. × 25 mm LOC × 8 mm Shank Dia. × 68 mm OAL; 2 FL; Carbide; Taper Ball Nose; Bright; Series 3446
| Applicable Material | | Aluminum / Non-Ferrous Materials | Other Non-Metallic Materials | | Coating | Uncoated |
| Application | | Finishing | | Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 5.33 mm | Coolant Supply Property (CSP) | External |
| Depth of Cut Maximum (APMX) | 25 mm | End Shape | Taper Ball Nose |
| Flute Count (NOF) | 2 | Shank Type | Round |
| Corner Radius (RE) | 1.5 mm | Measurement Type | Metric |
| Overall Length (OAL) | 68 mm | Style | Finisher |
| Flute Helix Angle (FHA) | 30 Degrees | Tool Type | Taper Ball 6° |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Series/List # | 3446 |
| Body Half Taper Angle (BHTA) | 6 Degrees |
Product Features
| Remarks | • Turbine tapered carbide ball nose end mill for universal roughing and finishing applications in aluminum alloys and plastics • Design with two flutes in roughing/finishing profile and various taper angles. • Ideal for pre-machining and finishing turbine components or other complex 5-axis components | Country of Origin | Germany |
Shipping Info
Package Weight
0.0792
