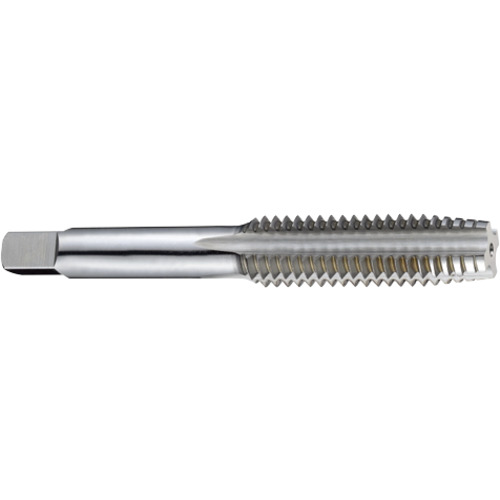

5/8-11 H3 6 OAL 4FL HSS PLUG-TIN
| Thread Diameter Size (TDZ) | 5/8″ | Standard | 302 |
| Threads per Inch (TPI) | 11 | Chamfer | 4P-5P |
| Thread Standard | UNC | Coating | TiN |
| Overall Length (OAL) | 3.81″ | End Shape | Plug |
| Thread Cutting Part Length (THL) | 1.81″ | Style | Plug |
| Usable Length (LU) | 1.81″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | T8616 |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 5/8″ - 11 |
| Tool Type | Hand Tap | Shank Type | Square |
Product Features
| Country of Origin | KR |
Shipping Info
Package Length
4
Package Width
0.875
Package Height
0.875
Package Weight
0.34
