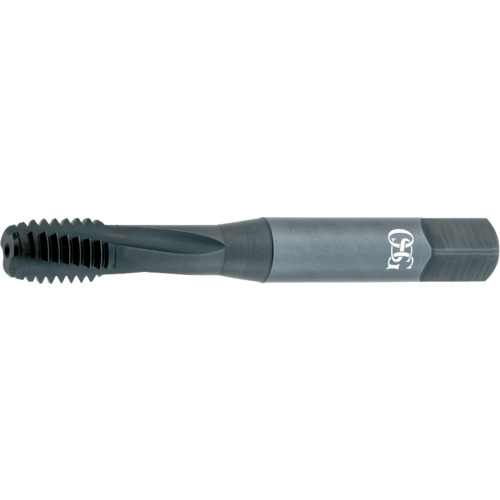

5/8-11 Dia. - STI - H3 -4RX - - Semi-Bottoming EXO VC10 S/O Tap
| Tool Type | STI Tap | Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Style | Semi-Bottoming | Chamfer | 2.5P-3P |
| Thread Diameter Size (TDZ) | 5/8″ | Coating | Black Oxide |
| Thread Tolerance Class (TCTR) | H3 | Flute Helix Angle (FHA) | 15 Degrees |
| Thread Standard | STI | Usable Length (LU) | 2.433″ |
| Thread Cutting Part Length (THL) | 0.909″ | Measurement Type | Inch |
| Threads per Inch (TPI) | 11 | Connection Diameter Machine Side (DCONMS) | 0.59″ |
| Overall Length (OAL) | 4-1/4″ | Series/List # | 315 |
| Cutting Edge Material | HSS-PM | Thread Size | 5/8″ - 11 |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | JP |
Shipping Info
Package Length
4.30000
Package Width
1.00000
Package Height
.90000
Package Weight
.2800
